Hot Tensile Core Box Accessory

Model 42100G

Hot Tensile Core Box Accessory | Model 42100G | SIMPSON

Part numbers

AFS: #0042100G
Metric: #0042100G

Sand casting process

Nobake/Air-set

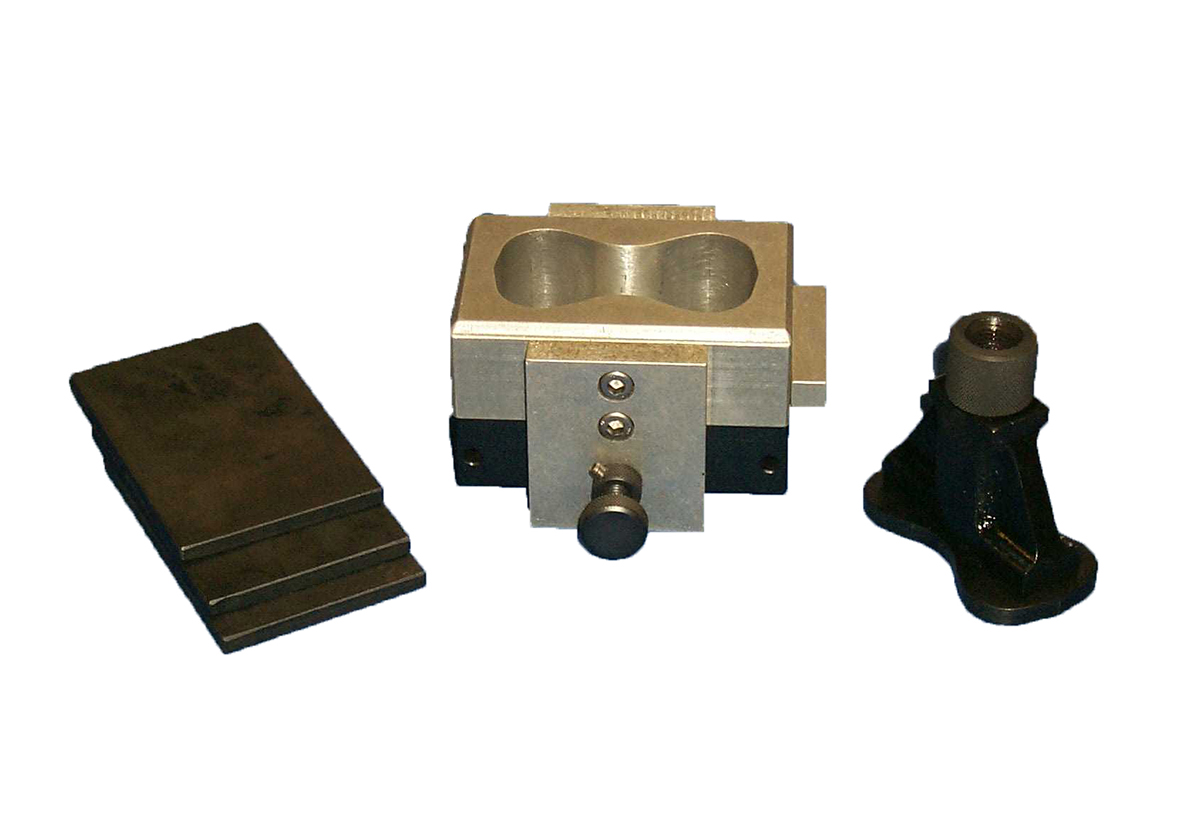

The Hot Tensile Core Box Accessory is used with the Sand Rammer, Model No. 42100 to prepare standard tensile dog bone specimens bonded with air set or core oil type binders.

The kit includes tooling to form the tensile specimen, special rammer foot and if required, three dryer plates for baking the rammed sand specimens. These specimens are used in the Electronic Universal Sand Strength Machine, Model No. 42104 and the Cold Tensile Strength Accessory, Model No. 42104C to determine cold tensile strength.

Need More Information?

Contact Simpson to learn more about our innovative solutions and how we can support your operation. We are here to help if you have any questions or need assistance.

Need More Information

Related Content

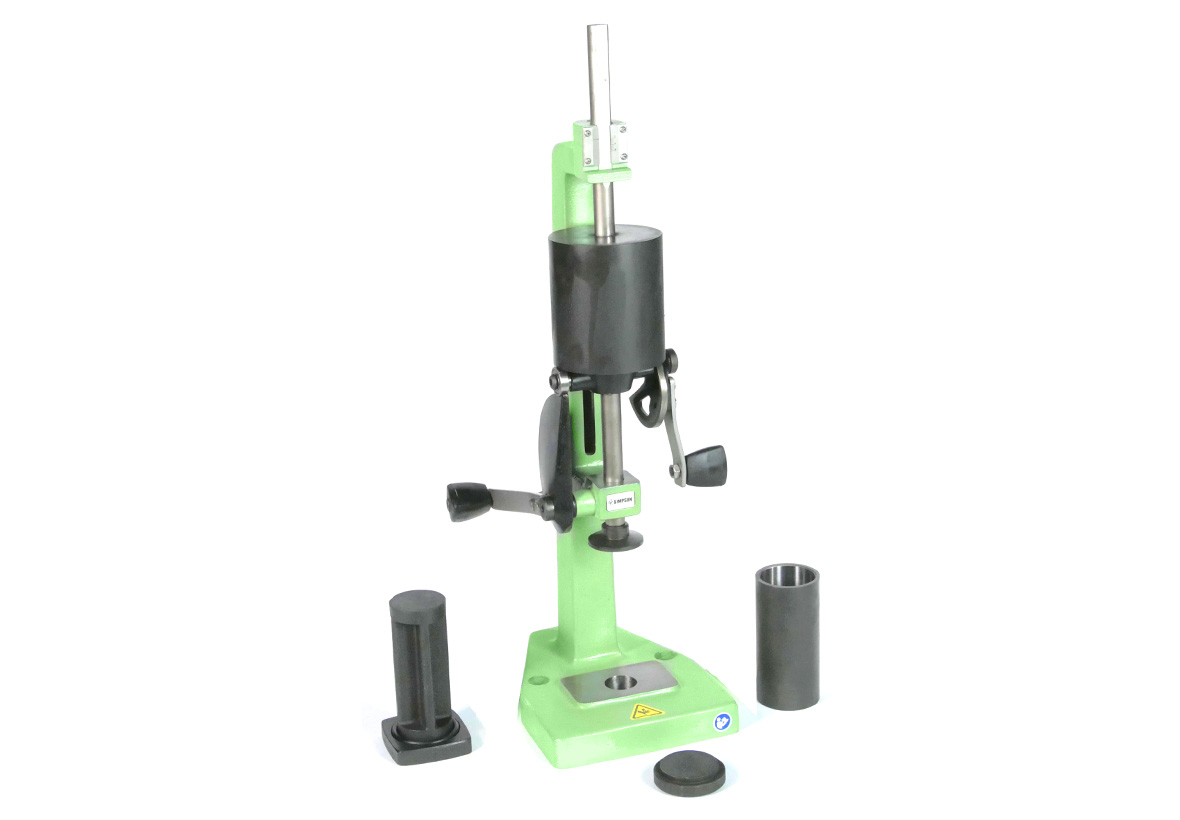

Sand Rammer | Model 42100 | SIMPSON

Sand Rammer - Model 42100

Used to prepare a standard AFS 2 in. x 2 in. (Metric 50 mm x 50 mm) cylindrical sand specimen for compression, shear, splitting, deformation and tensile tests.

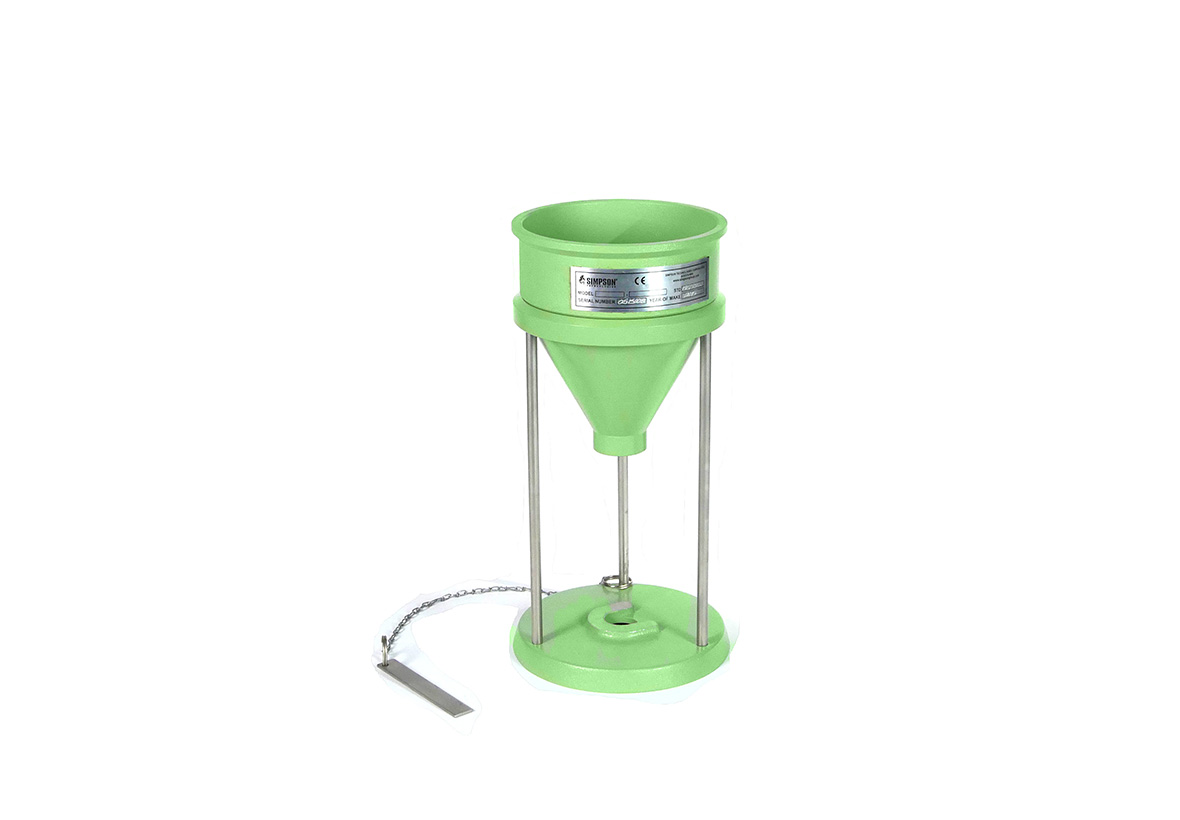

Tube Filler Accessory | Model 42100A | SIMPSON

Tube Filler Accessory - Model 42100A

Assists in filling the specimen tube for compactability tests.

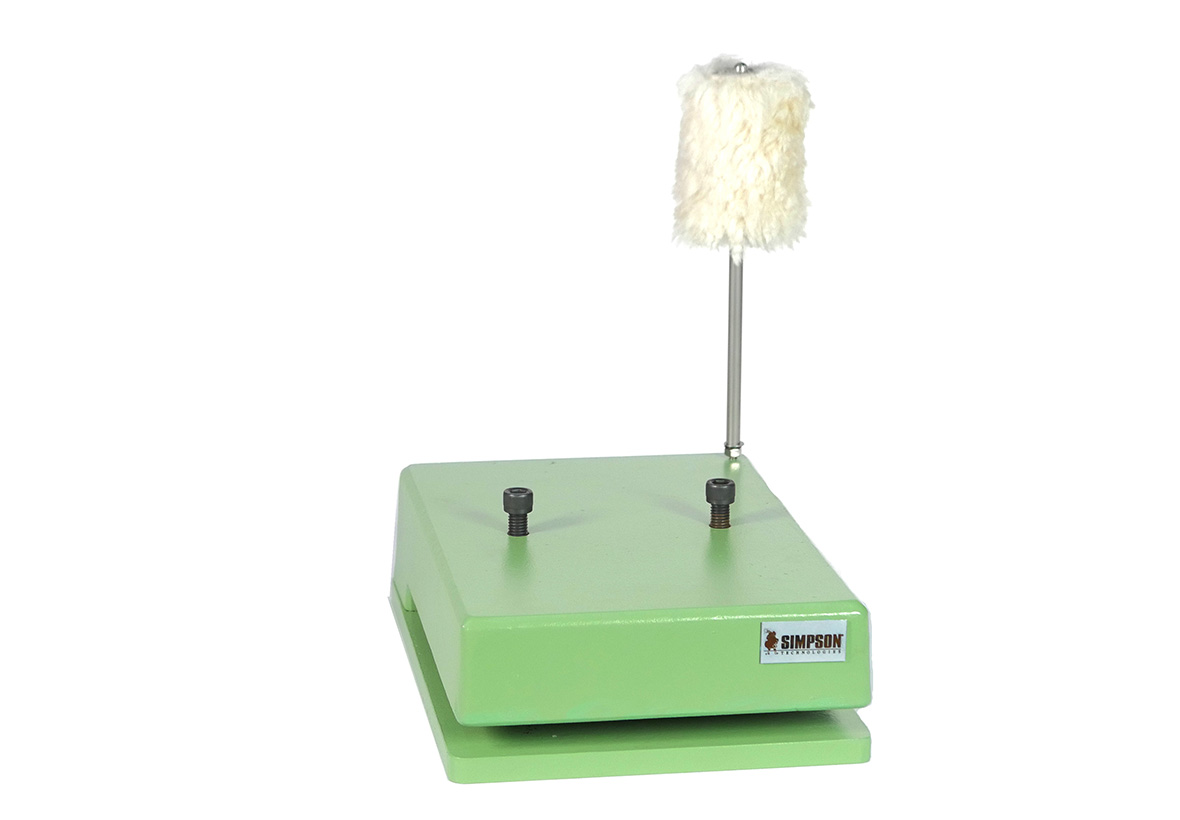

Sand Rammer Base | Model 42100C | SIMPSON

Sand Rammer Base - Model 42100C

To ensure consistent and accurate readings, the Sand Rammer (Model 42100) needs to be isolated from vibration variations.

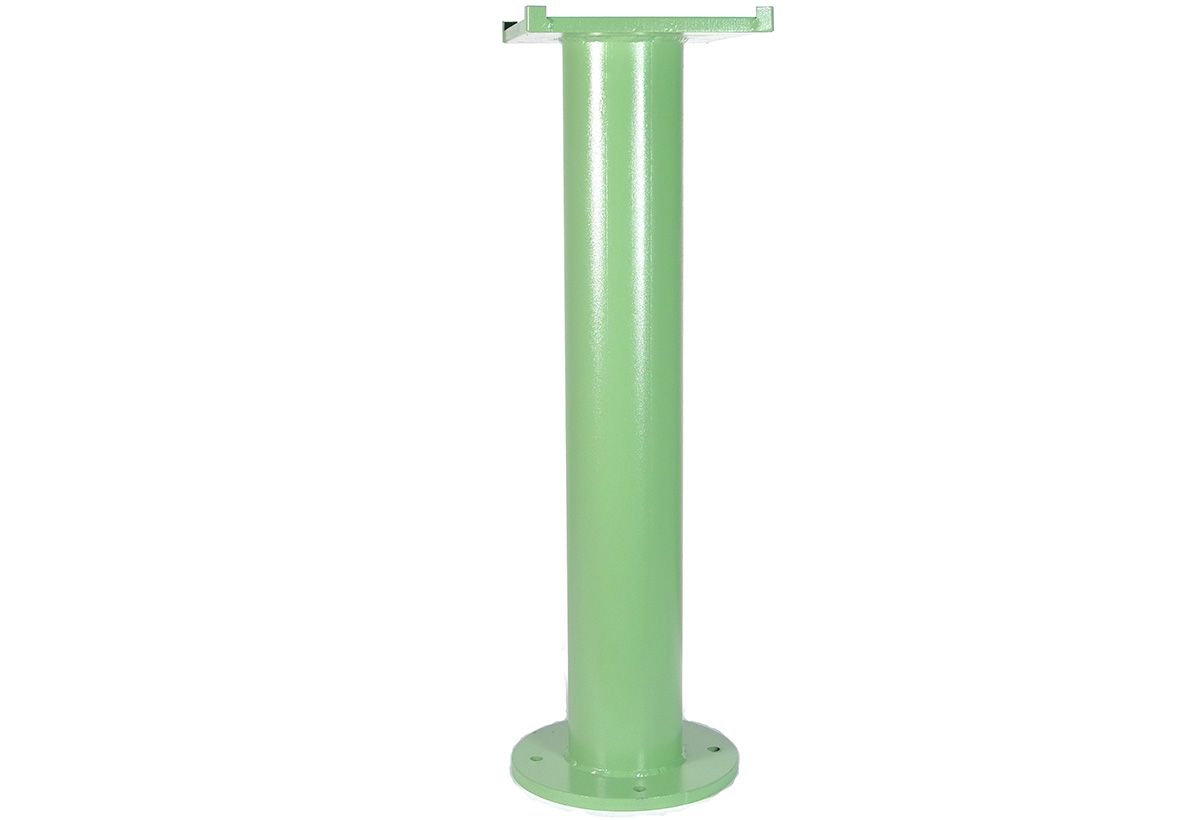

Sand Rammer Pedestal | Model 42100D | SIMPSON
